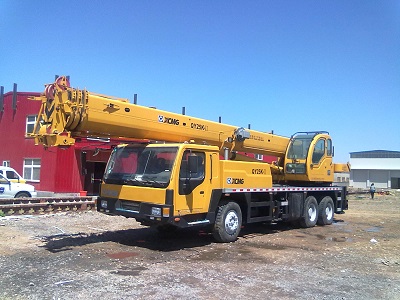

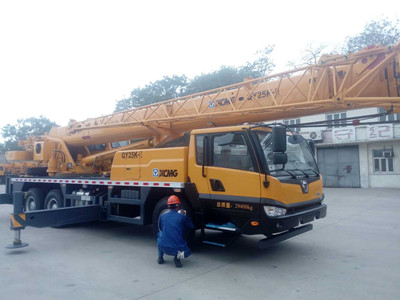

XCMG Brand QY25K-II Truck Crane - 副本

XCMG Brand Crane
truck crane
boom crane
telescopic crane
INQUIRY

• Leading performance: the boom length in full extension is 39.5m, the performance leading in 5%. The grade ability is 40%, which make the machine have good road adaptability.

• The unique U boom and plug-in boom head make the load-carrying capacity more balanced, and lift more smoothly.

• The unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer and more reliable.

• The control system is optimized by 8 patents; lifting, rotation, and luffing are easy and reliable.

• Six unique technologies supply the quality assurance, and make the products keep a high value.

• The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.

• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.

• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.

• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.

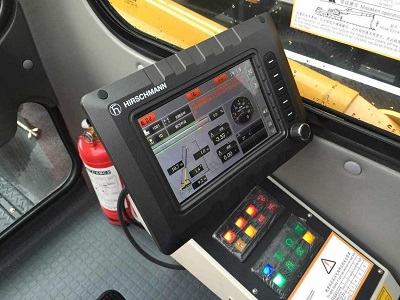

• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.

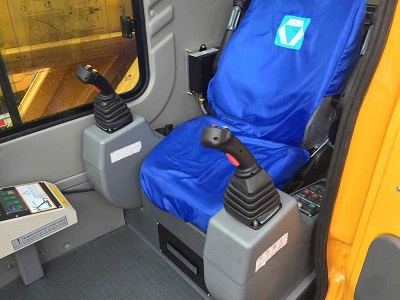

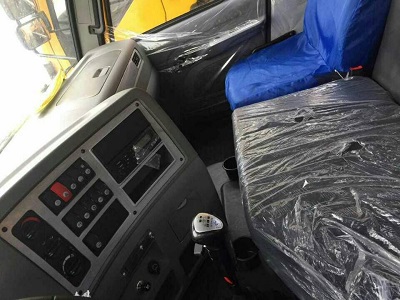

• The humanity design makes the cab and control cab more spacious, and easy to operate.

• Six unique manufacturing technologies ensure the high quality.

Item			Unit
Dimensions	Total length	12650	mm
	Total width	2500	mm
	Total height	3380	mm
Weight	Operating Weight	29400	Kg
	Front axle load	6200	Kg
	Rear axle load	23200	Kg
Power	Engine model	SC8DK280Q3/WD615.329
	Engine power ratings	206/2200 312/2200	Kw(r/min)
	Engine torque ratings	1112/1400 1160/1400	N.m(r/min)
Travel	Max.travel diameter	75	Km/h
	Min.turning diameter	21.5	m
	Min.ground clearance	275	mm
	Approach angle	16	.
	Departure angle	13	.
	Max.gradeability	30	%
	Fuel consumption of 100km	37	L
Driving Parameters	Max.total lifting capacity	25	t
	Min. working radius	3000	mm
	Turning radius at swing table tail	3.065	m
	Max.lifting torque	1010	Kn.m
	Basic boom lifting length	10.7	m
	Longest boom lifting length with secondary arm	42.15	m
	Longest boom lifting length	34.19	m
	Outrigger longitudinal distance span	5.14	m
	Outrigger lareral distance span	6	m
Working speed	Elevation duration for secondary boom	75	s
	Elevation duration for fully extended boom	100	s
	Max.rotation speed	≥2.5	r/min
	Max.speed for main winch	≥120	m/min
	Max.speed for auxiliary winch	≥120	m/min
